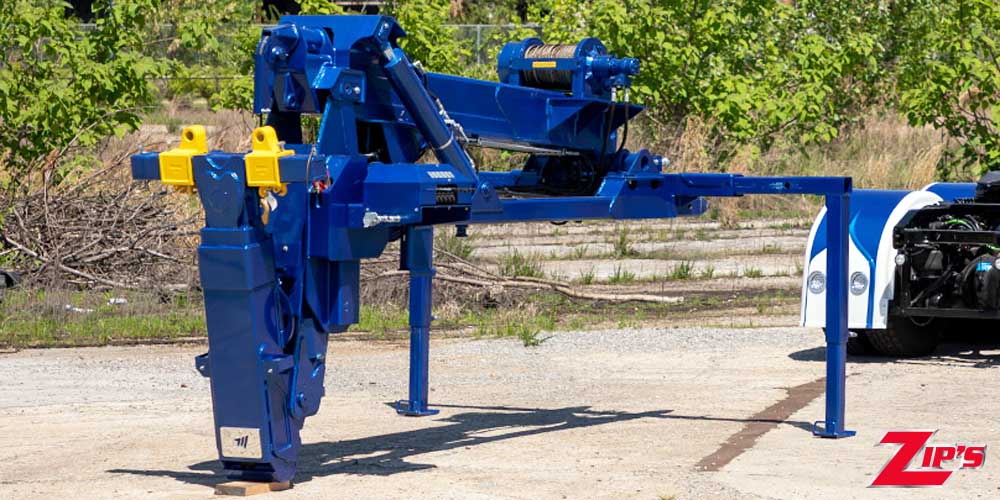

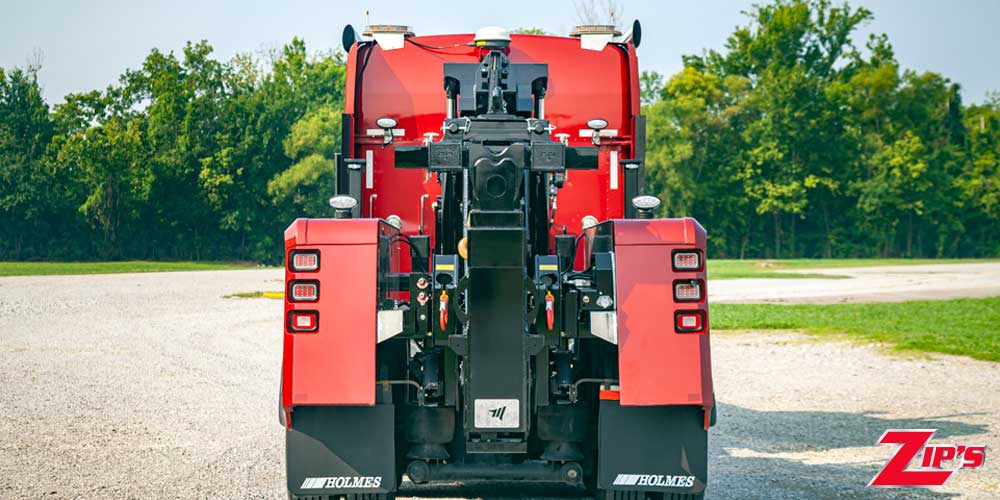

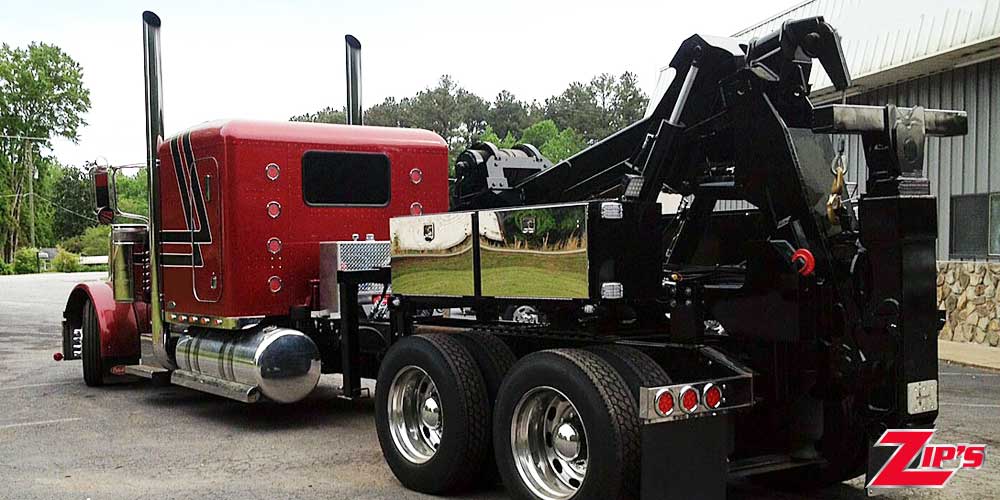

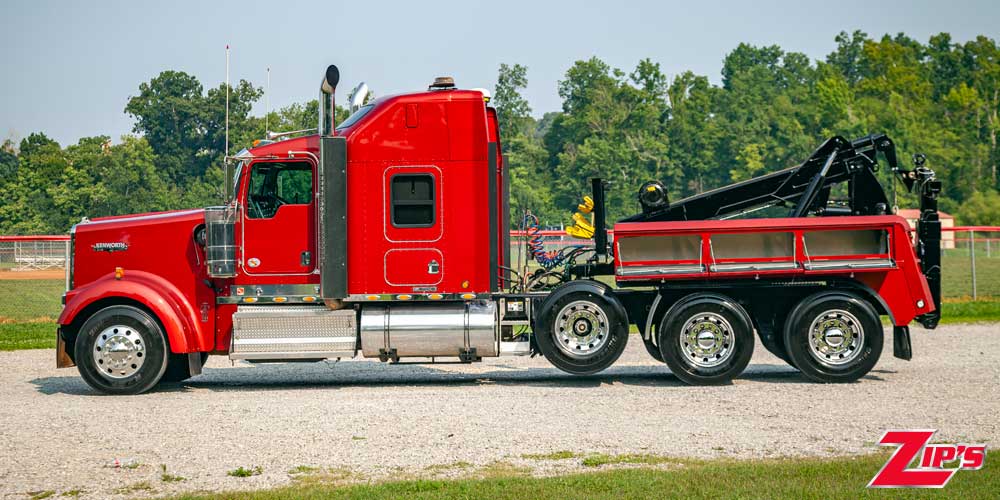

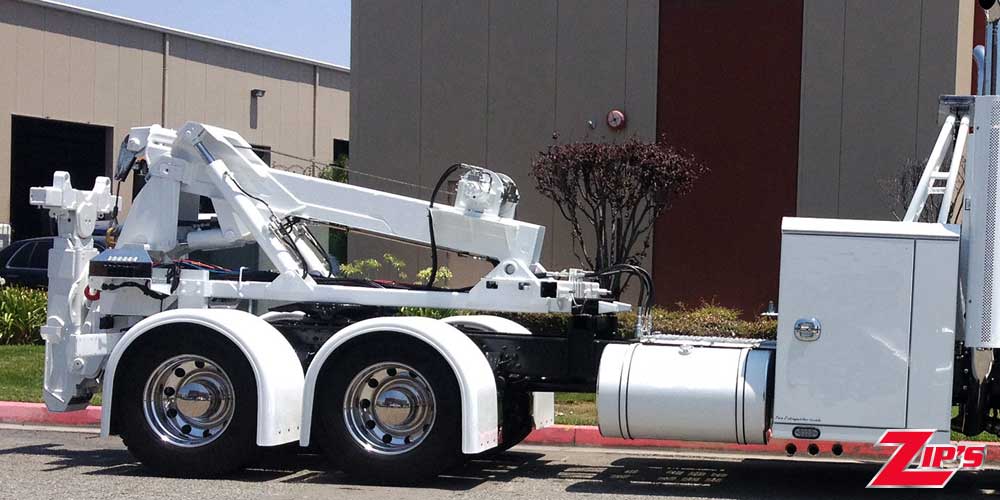

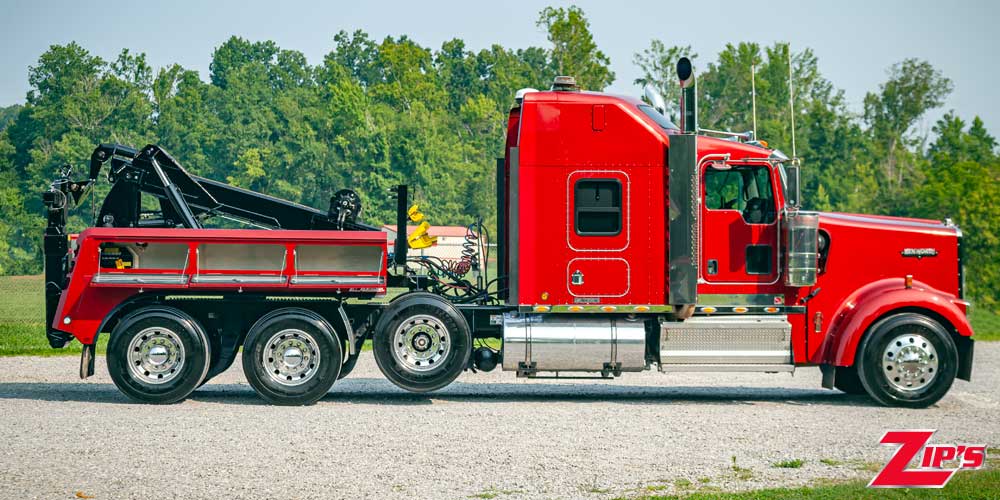

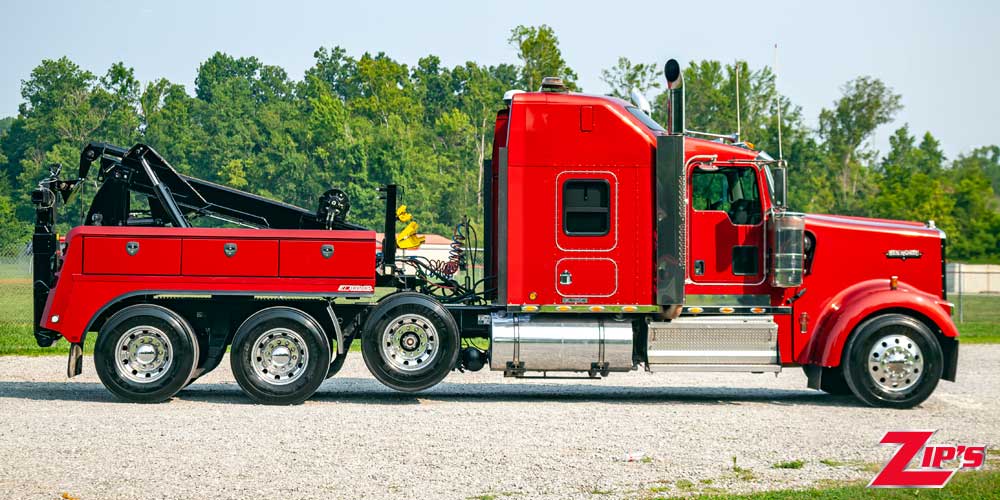

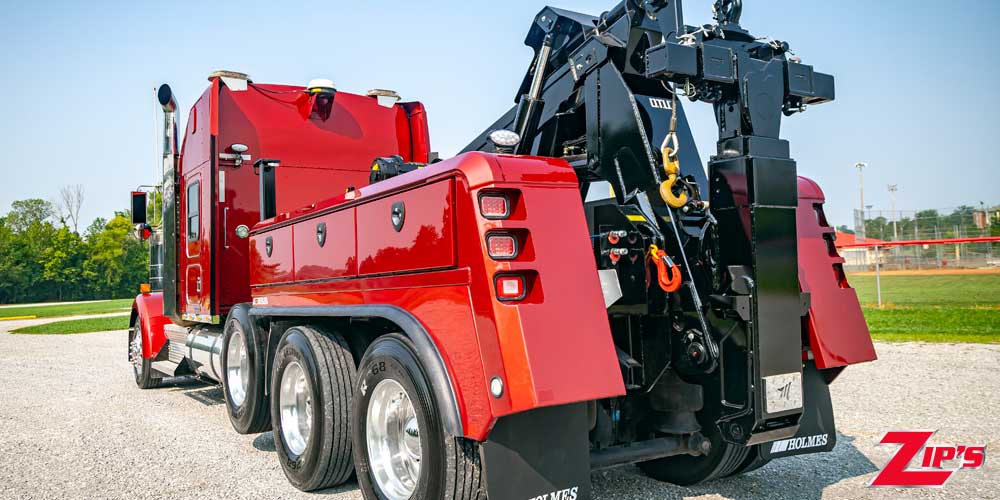

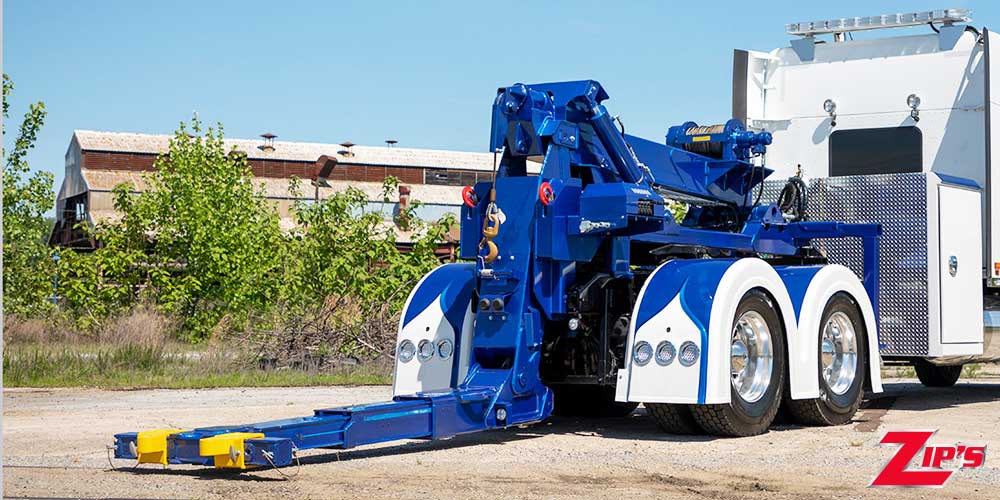

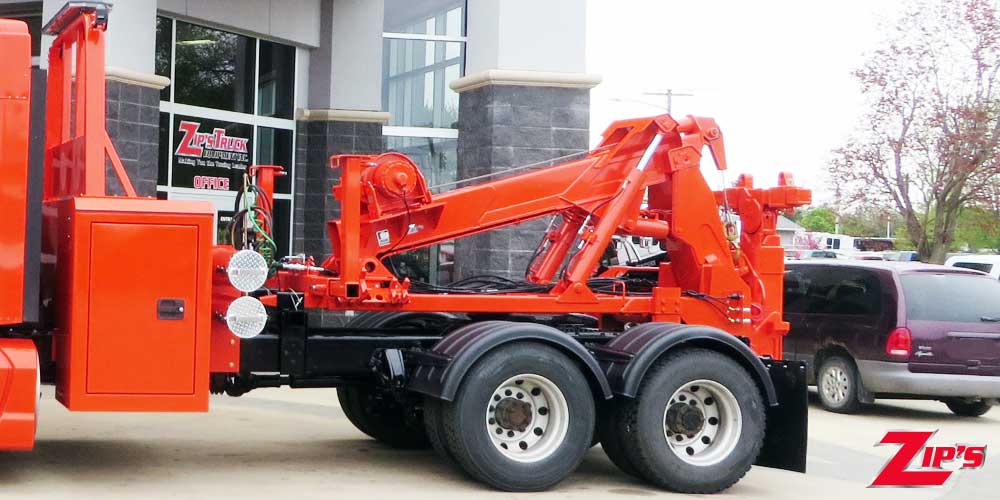

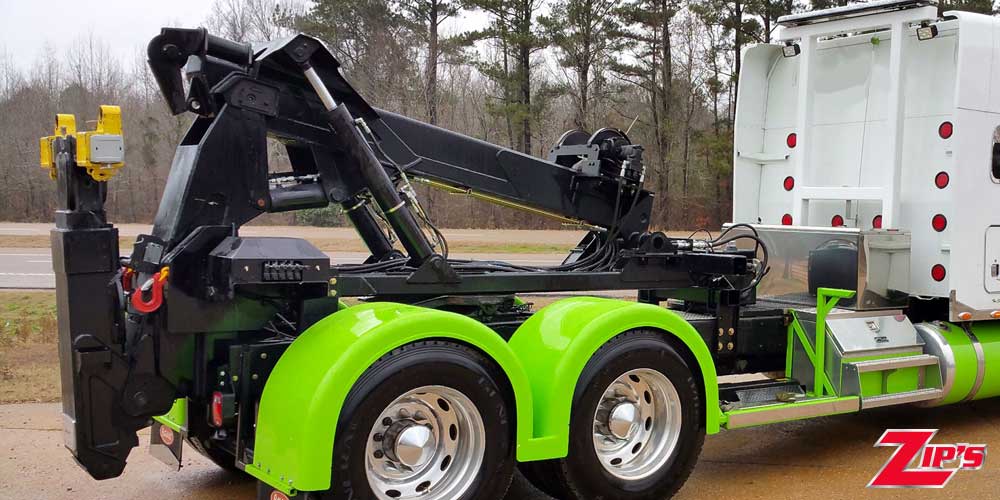

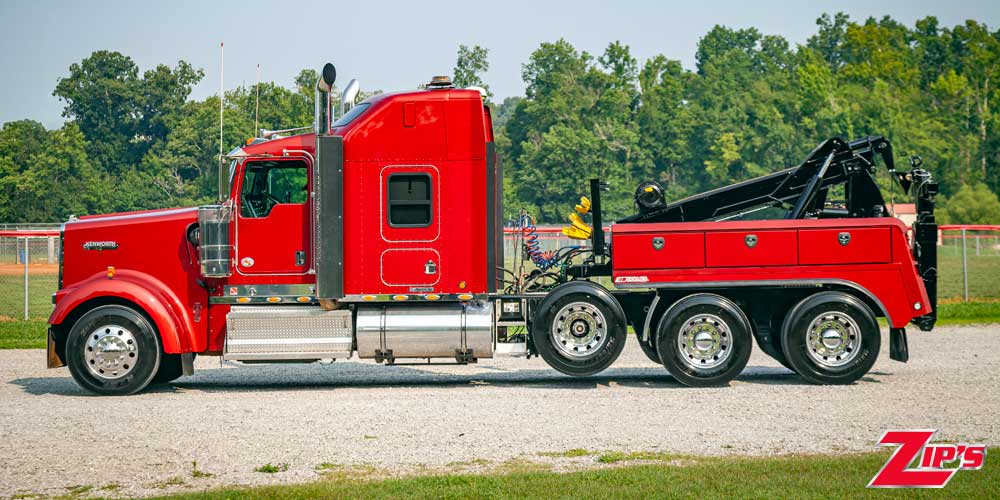

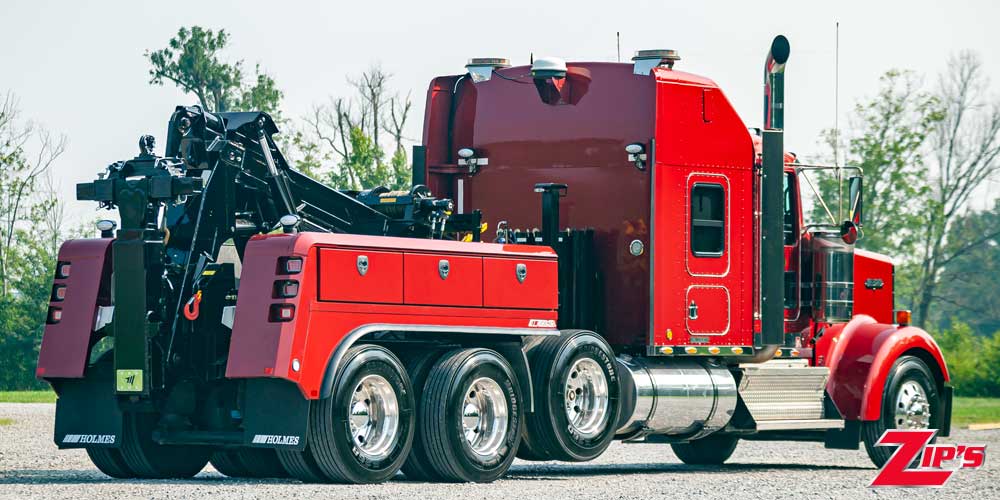

Holmes Detachable Towing Unit (DTU)

Contact us to explore purchase options

Request Information

Body Specs Chassis Specs Brochures Inspection Report Credit Application

Body Specs

Stock Number	Holmes Detachable Towing Unit (DTU)
Equipment Brand	Holmes
Equipment Model	Detachable Towing Unit
Body Type	Heavy Duty Wrecker
Number Of Winches	1

More Body Features

Standard

Low Profile Fabricated Cross Bar

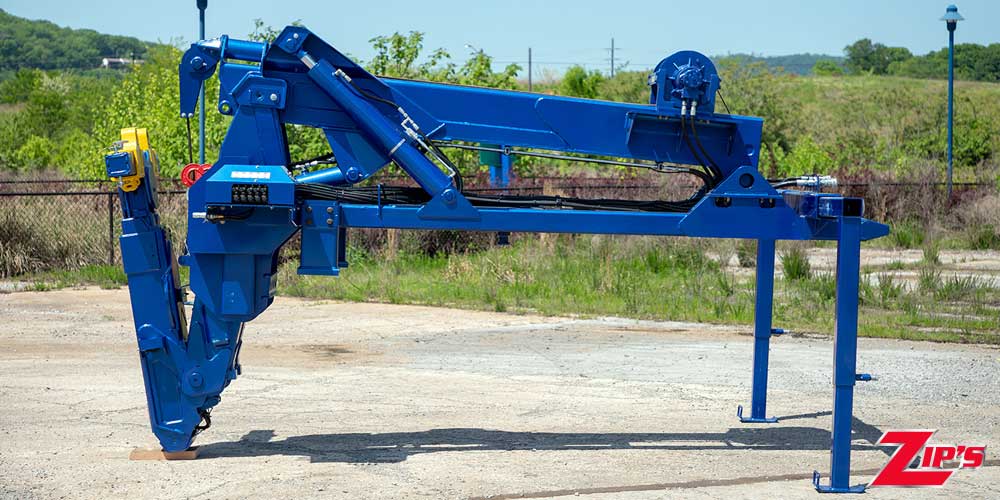

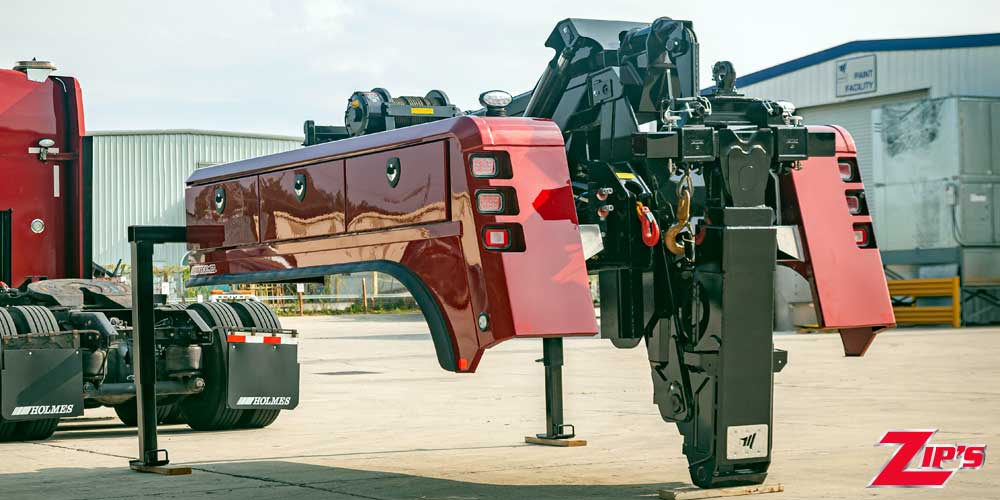

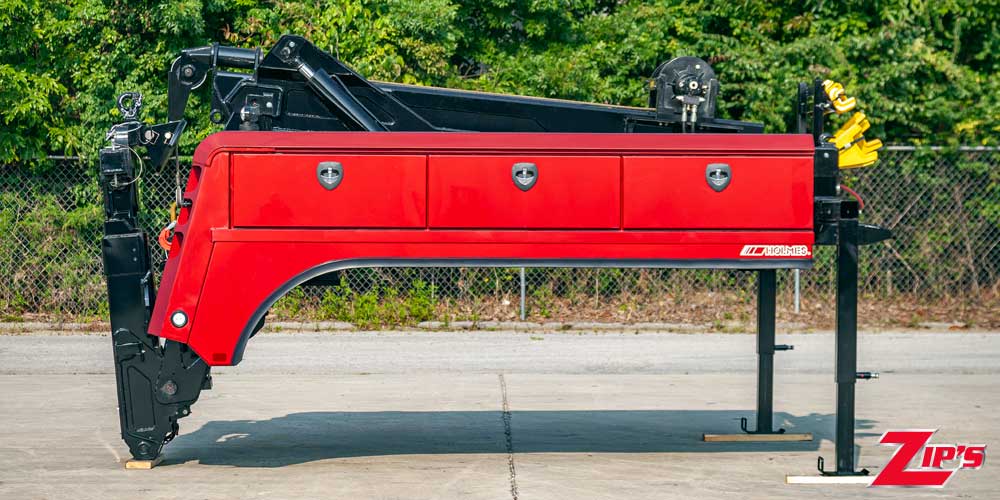

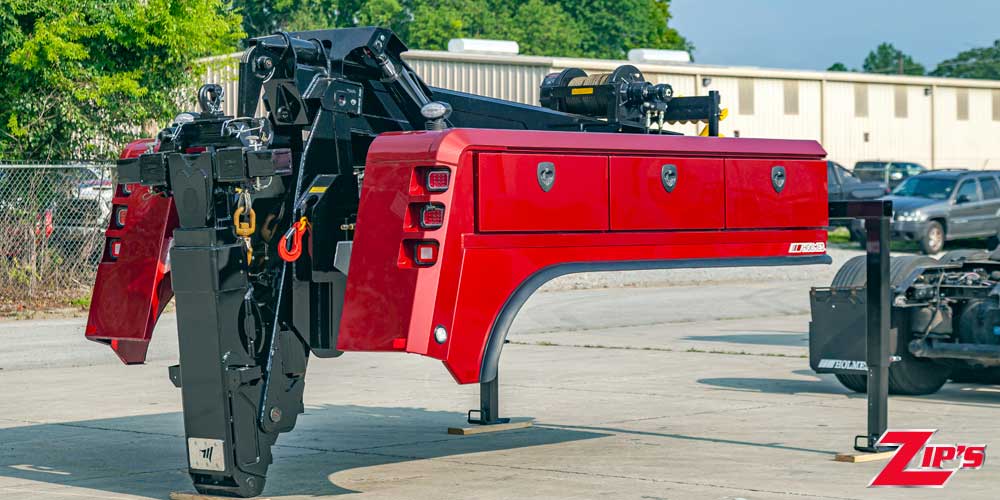

Front Stands
Fork Storage Holders
Air & Electrical Lines
Safety Chains

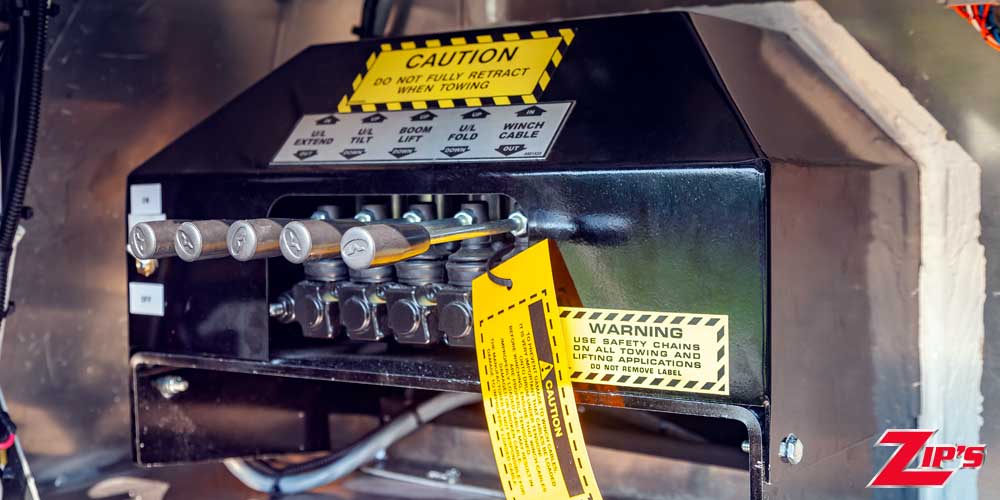

Passenger Side Control
Hook End Caps
5 Sets of Frame Forks
20,000 lb Planetary Winch 9/16” x 175’ IWRC Cable (Winch Options Include: Air Tensioners, Air Free Spool, 360° Sheave Heads)

Optional

25,000 lb Planetary Winch - 5/8” x 200’ IWRC Cable
Wet Line Kit (PTO w/Pressure Relief Valve, Pump, 15 Gallon Hydraulic Tank, Return Filter, Quick Disconnect, Fittings & Hoses)
Hand Held Remote Control 6-Function Controller w/25’ Cord
5 or 9 Switch Panel
Wireless Remote Control
Tow Bar Lights (wired or wireless)
Emergency Lighting
Tool Compartment
Work Area Lighting
Additional Front Lock Down Kit (for setting up second tractor)
Bus Lift & Bus Lift Storage System
Additional Lift Forks & Towing Attachments

Specifications

Lift Capacity	Retracted	35,000 lbs.
Lift Capacity	Extended	16,000 lbs.

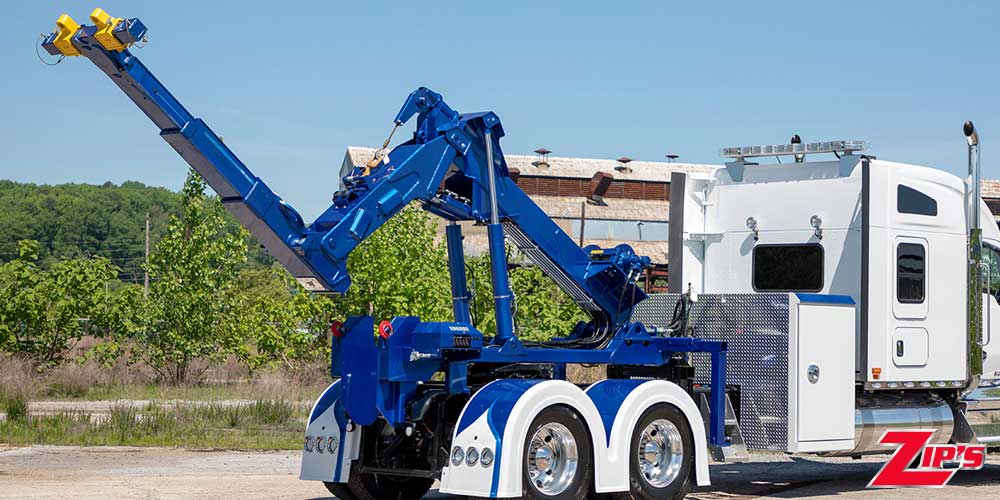

Reach Past Tailboard	Fully Extended	113 inches
Reach Past Tailboard	Fully Retracted	51 inches
Power Tilt Arc		20°
Shipping Weight		6,200 lbs.

Chassis Specs

Stock Number	Holmes Detachable Towing Unit (DTU)

More Chassis Features

Chassis Recommendations

Minimum Wheelbase	250”
Minimum Clearance from Front of DTU to Center of Trunnion	84”

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Miller Industries Towing Equipment Inc. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
